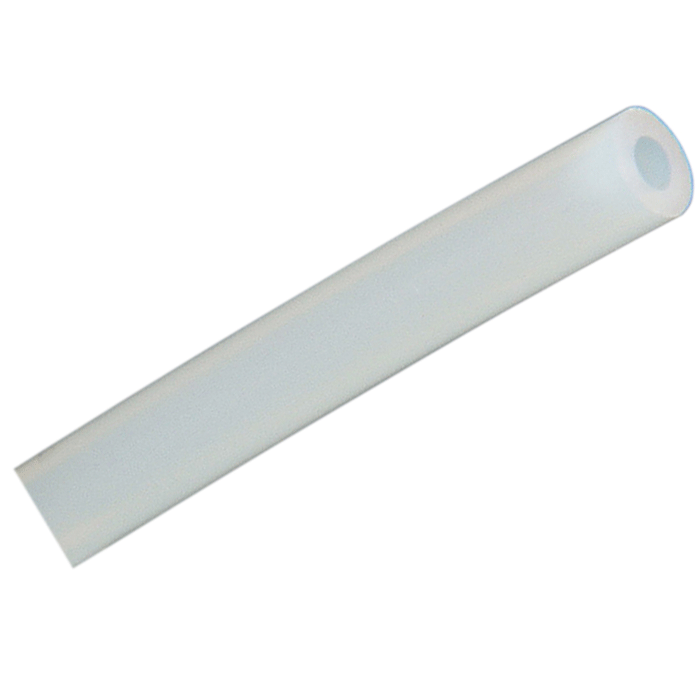

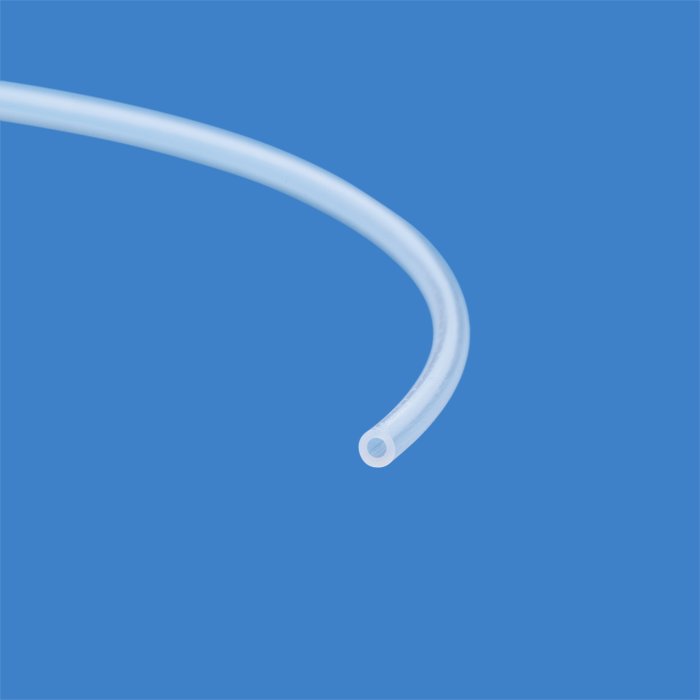

Tubing, PTFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49225-65-3M ARE‑Applied Research PTFE Tubing is a thin‑walled, high‑capacity fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering a large internal diameter for very high flow rates and minimal restriction in solvent pathways.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or colorants, ensuring maximum chemical purity and compatibility with sensitive analytical workflows.
Precision Dimensions – Maximum Flow Capacity
Inner Diameter (ID): 1/16" (1.6 mm)
Outer Diameter (OD): 1/8" (3.2 mm)
Wall Thickness: 0.80 mm
Tolerance (ID & OD): ± 0.20 mm
✅ Large bore supports very high flow rates with minimal backpressure
Thin‑Walled Construction – Flexible High‑Volume Transfer
Thin‑wall design enhances flexibility and routing ease
Ideal for bulk fluid transfer lines and waste handling systems
✅ Supports efficient installation in larger fluid paths
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer systems
Pressure Rating: 510 psi (35 bar)
✅ Suitable for high‑volume, low‑pressure fluid handling
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and analytical workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous solutions
Maximum Temperature: 260 °C
✅ Performs reliably in harsh chemical and elevated temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when using:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative tubing where gas impermeability is critical
Flexible & Durable Design
Flexible for longer routing and system integration
Durable under repeated lab use
Natural translucent appearance allows visual flow monitoring
✅ Supports efficient operation and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the length that fits your application:
3 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Bulk solvent delivery systems
High‑volume waste lines
Pre‑pump mobile phase routing
General laboratory fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use properly sized fittings for secure, leak‑free connections
